Examples are valid for:
TMflow Software version: 1.76.6300 or above.
TM Robot Hardware version: HW 3.2 or above
Other specific requirements: None
Note that older or latest software and hardware versions may have different results.
Hardware Installation Guide #
Note :
- For Profinet card , please contact our sales team for purchasing purpose
- The picture in this document is using Control Box for Hardware 3.2 , please note that different control box version might slightly has different installation position due to control box version
Hardware Preparation : #
Hardware Installation Procedure : #

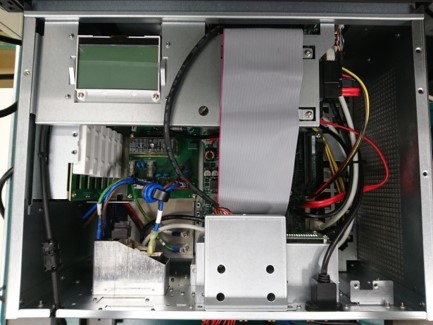

Step 1 : Remove the top cover of control box

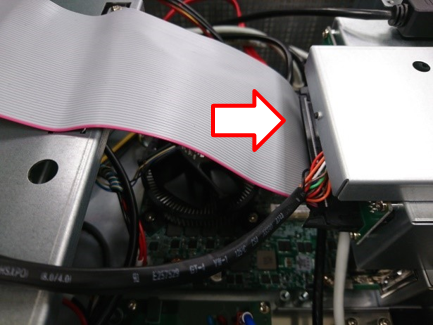

Step 2 : Remove the “flexible flat cable”

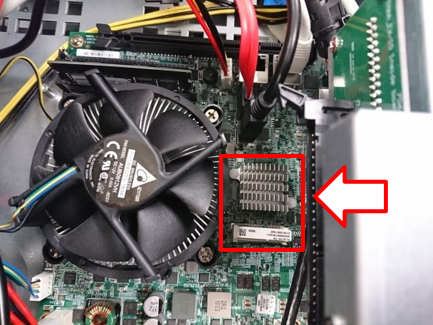

Step 3 : Find the mini- PCIE slot
Step 4 : Install the PROFINET mini-PCIE board and communication cable (please check your control box version and refer to the picture)

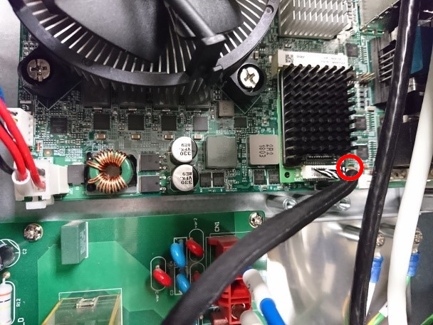

Step 5 : Fix the board by screw
Step 6 : Remove the barrier plate

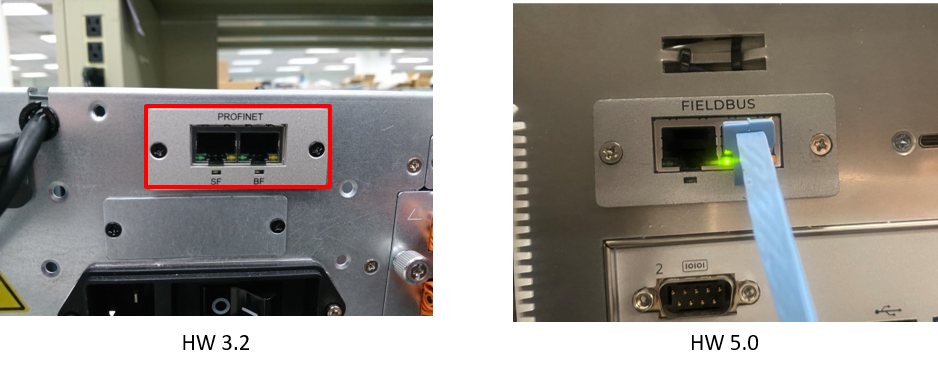

Step 7 : Install the PROFINET communication Module

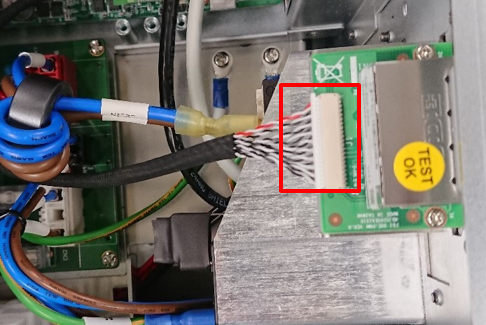

Step 8 : Plug-in the communication cable and assemble back the top cover of control box
SF (System Fault) = Hardware or software error
BF (Bus Fault) = Bus error (for CPUs with DP interface only)
Software Installation Guide #
NOTE :
- Please make sure to burn FW into Profinet Hardware first to enable driver and configure workable.
- For FW data, please ask your FAE to provide the data and you also need maintenance dongle.
- If the pre-Install HMI ( factory image) version is TMflow 1.76 or above but the PROFINET device is not pre-install, please execute.
- If you want to upgrade the HMI from version 1.76 to version 1.80, please remove the PROFINET mini-PCIE board before the upgrade.
Update/Check FW & Setting
– CifxSetup.exe
– CifxTest.exe

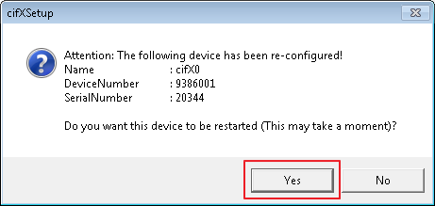

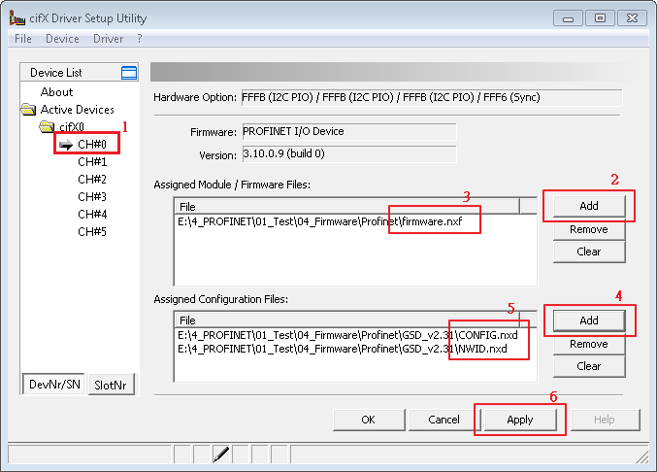

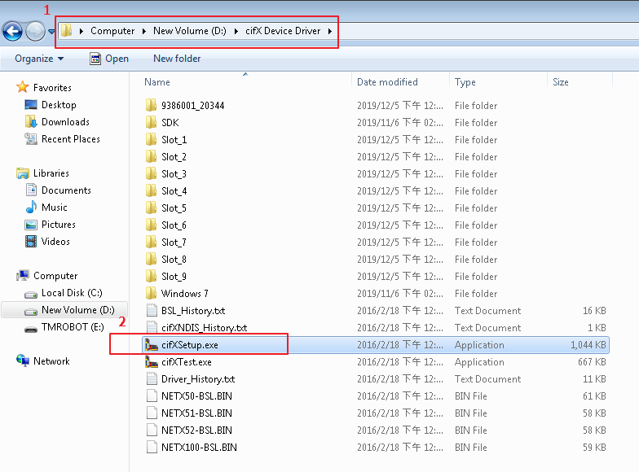

Update FW & Setting – CifxSetup.exe #
Copy Cifx file and paste into (D:) File, and follow the steps in the picture based on the description in the picture

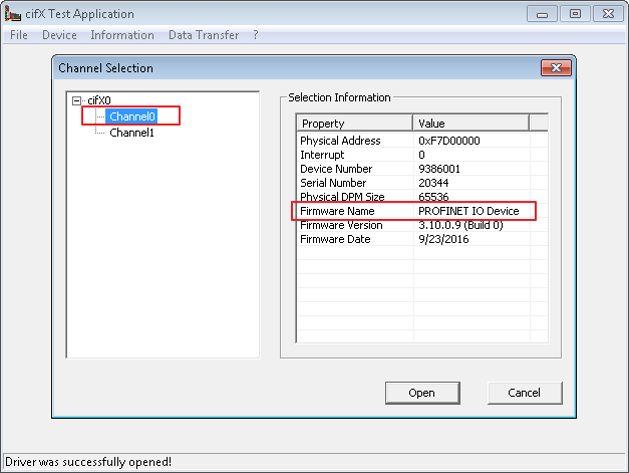

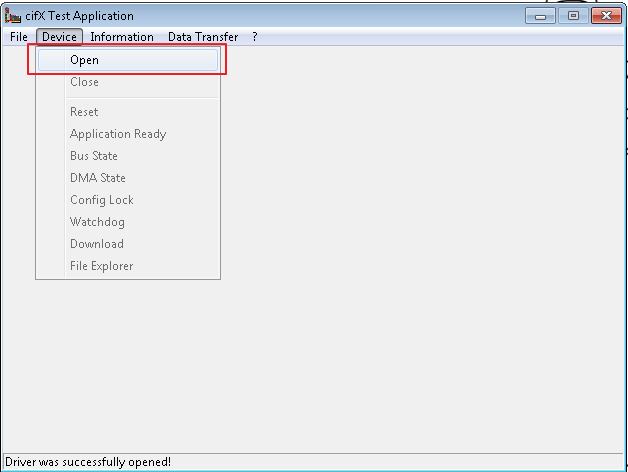

Check FW & Setting – CifxSetup.exe #
Follow the instructions based on the picture above
